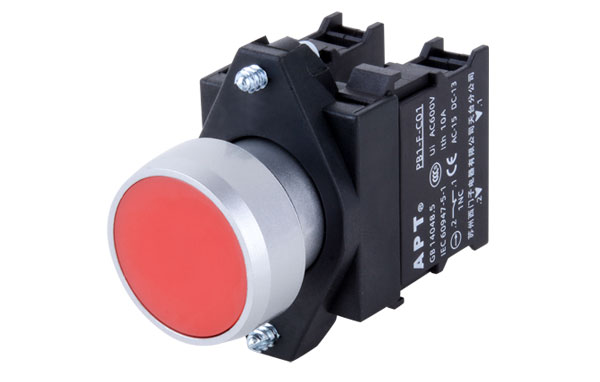

APT/西门子PB1L系列按钮开关参数说明
金属化系列按钮，模块化组合结构，单片卡扣式触点模块和发光模块，安装维护方便、结构可靠。材料符合欧盟RoHS标准要求，头部防护等级高达IP65。带有触点自洁功能的触点模块，接触可靠性达百万分级。一体化结构设计的发光模块，功耗低、电压规格齐全。
重要参数：
额定绝缘电压：AC 600V
约定发热电流：10A
电气寿命：50万次/AC-15 6A/220V
防护等级：IP65
安装孔径：Φ22.5mm
红、绿、黄、蓝、白、黑六种颜色
锌铝合金压铸头部，坚固耐用
触点采用银合金，通断可靠、电气寿命长。
模块化组合结构
额定绝缘电压：AC600V 50Hz
照明模块AC400V 50Hz; DC250V
工频耐受电压：AC1890V
约定发热电流：10A
机械寿命：一般钮、蘑菇钮、带灯钮300万次
旋钮、紧凑型按钮、双位按钮、自锁钮30万次
钥匙钮、紧停钮5万次
开关元件300万次
电气寿命：50万次/AC-15 at 6A/230V
环境温度：-25℃～70℃
储存温度：-40℃～80℃
防护等级：IP65
动作频率：1200次/1小时
产品认证：CCC、CE、RoHS
APT/西门子PB1L系列按钮开关型号一览
|
型号 |
型号 |
型号 |
型号 |
型号 |
|
PB1L-11XD/y23 |
PB1L-10XD/b31 |
PB1L-10XD/y23 |
PB1L-21Y/L |
PB1L-22/k |
|
PB1L-11D/r22 |
PB1L-10XD/b23 |
PB1L-20CX/k |
PB1L-11M/r |
PB1L-22/g |
|
PB1L-10XD/r31 |
PB1L-11RD/rgw23 |
PB1L-AAYS6/R |
PB1L-20D/g31 |
PB1L-22Y/L-EP |
|
PB1L-01M/r-EP |
PB1L-40XD/g23 |
PB1L-AAXS6/k-MTO |
PB1L-20D/y23 |
PB1L-22/r-EP |
|
PB1L-02ZR/r-EP |
PB1L-11TD/b22 |
PB1L-11XD/r26 |
PB1L-10XD/w31fu |
PB1L-22/g-EP |
|
PB1L-10D/b23-EP |
PB1L-11D/y22 |
PB1L-10DS99/r23 |
PB1L-22D/g31 |
PB1L-11X/k-EP |
|
PB1L-10D/w23-EP |
PB1L-10ZR/r-30 |
PB1L-11Y/Lfu |
PB1L-20RD/rgr31 |
PB1L-11/b-EP |
|
PB1L-10Y/E-EP |
PB1L-11T/r-H |
PB1L-20XS6D/r23ffu |
PB1L-20X/g |
PB1L-AAS99/y |
|
PB1L-20/k-EP |
PB1L-11YS6/C |
PB1L-20/y |
PB1L-10XD/y31 |
PB1L-11XS6D/w23 |
|
PB1L-22XD/g31 |
PB1L-11MD/g31 |
PB1L-11RD/rgg23 |
PB1L-20D/g25 |
PB1L-21X/k |
|
PB1L-10TD/g31-H |
PB1L-11/y-H |
PB1L-10D/r23-H |
PB1L-33/r |
PB1L-11/y |
|
PB1L-20TD/g31 |
PB1L-11CX/y |
PB1L-10TD/r23-H |
PB1L-20D/r31 |
PB1L-40D/W26 |
|
PB1L-22XS6D/g31f |
PB1L-20CXS6D/b23 |
PB1L-10S99/w |
PB1L-20RD/rgr23 |
PB1L-11D/r31 |
|
PB1L-22YS6/C |
PB1L-AAY/Rfu |
PB1L-22D/w21 |
PB1L-10D/g31-K40 |
PB1L-20/g |
|
PB1L-10DS99/w23 |
PB1L-11MD/r23 |
PB1L-22D/w23 |
PB1L-30/b |
PB1L-11XD/b31 |
|
PB1L-20XS6D/g23ffu |
PB1L-11XS6D/r31fu |
PB1L-22XS6/k |
PB1L-04T/r |
PB1L-11D/g31 |
|
PB1L-10CX/kfu |
PB1L-11XD/g23 |
PB1L-22XS6/r |
PB1L-02T/r |
PB1L-11TD/y23 |
|
PB1L-22CXS6/kffu |
PB1L-20XD/g23 |
PB1L-22XS6/b |
PB1L-10D/g23-K10 |
PB1L-11XS6/b |
|
PB1L-11RD/rgg31 |
PB1L-10DS99/g23 |
PB1L-01MD/g23 |
PB1L-33XS6/k |
PB1L-02ZLA/r |
|
PB1L-10X/k-EP |
PB1L-01Y/Lfu |
PB1L-22XS6/y |
PB1L-11D/y23 |
PB1L-11XS6D/g31ffu |
|
PB1L-22CXS6/k |
PB1L-40ZR/r |
PB1L-20DS99/g25 |
PB1L-AAS99/r |
PB1L-10XD/g23 |
|
PB1L-11T/r |
PB1L-22/b |
PB1L-20XD/b31 |
PB1L-AAS99/g |
PB1L-10CXD/r23 |
|
PB1L-40X/k |
PB1L-22X/g |
PB1L-11XD/b23 |
PB1L-20ZR/r |
PB1L-10CXD/y23 |
|
PB1L-40XD/g31 |
PB1L-10XS6D/g23ffu |
PB1L-11XD/r23 |
PB1L-10S99/g |
PB1L-10CXD/g23 |
|
PB1L-40X/g |
PB1L-22ZR/r |
PB1L-20XS6D/g23 |
PB1L-10S99/k |
PB1L-10M/g |
|
PB1L-20XS6D/g31 |
PB1L-10X/kfu |
PB1L-10MD/g23 |
PB1L-02ZY/r |
PB1L-10M/y |
|
PB1L-11XS6D/w23ffu |
PB1L-11X/kfu |
PB1L-11TD/w21 |
PB1L-11CX/b |
PB1L-10CXD/b23 |
|
PB1L-02Y/E |
PB1L-11S99/g |
PB1L-11TD/w23 |
PB1L-20DS56/g25 |
PB1L-11/w |
|
PB1L-10M/r |
PB1L-11TD/y31-H |
PB1L-20MD/r23 |
PB1L-11XD/w23 |
PB1L-12/k |
|
PB1L-20D/r23-H |
PB1L-20D/w26 |
PB1L-11/r-H |
PB1L-02D/r23 |
PB1L-01S99/r |
|
PB1L-40CXS6/k |
PB1L-11XS6D/w31f |
PB1L-20Y/E |
PB1L-60CXS6/k |
PB1L-22XD/g23 |
|
PB1L-33CXS6/k |
PB1L-AADS99/g |
PB1L-30YS6/E |
PB1L-11D/w31 |
PB1L-11XS6D/g23ffu |
|
PB1L-33CX/y |
PB1L-AADS99/r |
PB1L-22Y/E |
PB1L-01D/y31-H |
PB1L-02XD/g23 |
|
PB1L-11X/k-MTO |
PB1L-40D/g31 |
PB1L-20CX/kfu |
PB1L-01D/g31-H |
PB1L-01MS99/r |
|
PB1L-32CX/k |
PB1L-01ZR/r-EP |
PB1L-33ZR/r |
PB1L-20YS6/Cffu |
PB1L-02ML/r |
|
PB1L-10XD/w23 |
PB1L-10D/w31-K40 |
PB1L-11X/g |
PB1L-40XS6/k |
PB1L-11CXS6D/g32fu |
|
PB1L-11/b |
PB1L-03ZR/r-EP |
PB1L-11CXS6/r |
PB1L-21CX/k |
PB1L-40YS6/E |
|
PB1L-20Y/L |
PB1L-20TD/r31 |
PB1L-11CXS6/g |
PB1L-31CX/k |
PB1L-11XS6/kffu |
|
PB1L-11RD/grg31 |
PB1L-20CX/r |
PB1L-11CXS6/y |
PB1L-22/w |
PB1L-30CX/k |
|
PB1L-10XS6D/g31 |
PB1L-11TD/r23 |
PB1L-11X/y |
PB1L-22/r |
PB1L-22CX/k |
