APT/西门子ALH-0.66III电流互感器

作者:APT代理商发布时间:2020-10-13 12:12

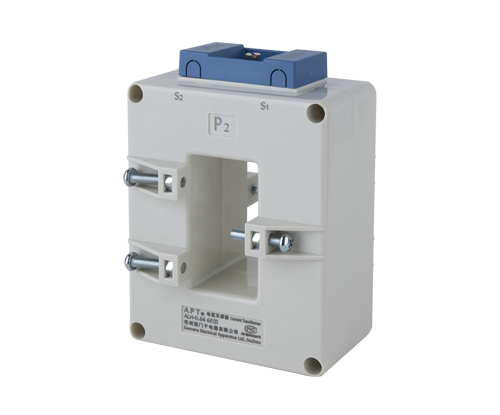

APT/西门子ALH-0.66III电流互感器


APT/西门子ALH-0.66III电流互感器介绍

ALH-0.66系列电流互感器设计新颖,补偿方法先进,工艺技术精湛,性能安全可靠,外形小巧美观,种类齐全,一般作控制、保护、测量用途。

APT/西门子ALH-0.66III电流互感器特点

外壳采用高强度PC材料制成,全封闭结构,主要用在当三相母线立式布置时的场合,主要采用母线固定的安装方法。

互感器容量进行了加大,精度大大得到了提高,能满足大阻抗负载及电能计量的更高要求。

内部铁芯选用优质硅钢片;

符合GB0840.2-2014;

通过国家计量认证;

二次电流分为5A和1A;

APT/西门子ALH-0.66III电流互感器参数


额定工作电压 (Un):AC660V

额定频率:50~60Hz

额定连续热电流 (Icth):1.2 x Ipn

额定短时热电流( Ith):60x Ipn(1sec.)

工频耐压:3kV (1min ,50Hz;外壳与二次端子间)

绝缘等级: E

接线端子的型式:螺钉压片紧固式 (螺纹为M4)

操作力矩: 拧紧力矩0.8~1.2N.m , 最大承受力矩 2.4N.m;

防护等级:端子 IP00,外壳IP40;

安装地点的海拔:不超过 3000米

APT/西门子ALH-0.66III电流互感器型号一览

型号

型号

型号

ALH-0.66 100III 1000/1 0.5R 10VA 1T

ALH-0.66 130III 4000/5 0.2R 40VA 1T EP

ALH-0.66 60III 800/5 0.2R 10VA 1T

ALH-0.66 100III 1000/1 0.5R 10VA 1T EP

ALH-0.66 130III 4000/5 0.2SR 40VA

ALH-0.66 60III 800/5 0.2SR 5VA

ALH-0.66 100III 1000/5 0.2R 15VA 1T

ALH-0.66 130III 5000/1 0.2R 20VA 1T

ALH-0.66 60III 800/5 0.5R 10VA 1T

ALH-0.66 100III 1000/5 0.2R 15VA 1T EP

ALH-0.66 130III 5000/5 0.2R 40VA 1T

ALH-0.66 60III 800/5 0.5R 10VA 1T EP

ALH-0.66 100III 1200/1 0.2R 20VA 1T

ALH-0.66 130III 5000/5 0.2R 40VA 1T-EP

ALH-0.66 80III 1000/1 0.5R 10VA 1T

ALH-0.66 100III 1200/5 0.2R 20VA 1T

ALH-0.66 130III 5000/5 0.2SR 40VA 1T

ALH-0.66 80III 1000/1 0.5R 10VA 1T-EP

ALH-0.66 100III 1200/5 0.2R 20VA 1T EP

ALH-0.66 130III 800/5 0.5R 10VA

ALH-0.66 80III 1000/5 0.2R 15VA 1T

ALH-0.66 100III 1200/5 0.2SR 10VA 1T

ALH-0.66 130III 800/5 0.5R 10VA-EP

ALH-0.66 80III 1000/5 0.2R 15VA 1T EP

ALH-0.66 100III 1250/5 20VA 0.2R 1T

ALH-0.66 20III 100/1 0.5R 0.2VA 1T

ALH-0.66 80III 1000/5 0.2R 15VA 1T-TS

ALH-0.66 100III 1500/1 0.2R 20VA 1T

ALH-0.66 20III 100/5 1R 2.5VA 1T

ALH-0.66 80III 1000/5 0.2SR 10VA 1T

ALH-0.66 100III 1500/1 0.2R 20VA 1T EP

ALH-0.66 20III 150/5 0.5R 2.5VA 1T

ALH-0.66 80III 1200/1 0.2R 20VA

ALH-0.66 100III 1500/5 0.2R 20VA 1T

ALH-0.66 20III 200/5 0.5R 5VA 1T

ALH-0.66 80III 1200/1 0.2R 20VA 1T-EP

ALH-0.66 100III 1500/5 0.2R 20VA 1T EP

ALH-0.66 20III 250/5 0.5R 5VA 1T

ALH-0.66 80III 1200/5 0.2R 20VA 1T

ALH-0.66 100III 2000/1 0.2R 20VA

ALH-0.66 20III 75/5 1R 2.5VA 1T

ALH-0.66 80III 1200/5 0.2R 20VA 1T EP

ALH-0.66 100III 2000/1 0.2R 20VA 1T EP

ALH-0.66 50III 1000/1 0.5R 10VA

ALH-0.66 80III 1200/5 0.2SR 10VA 1T

ALH-0.66 100III 2000/5 0.2R 40VA 1T

ALH-0.66 50III 1000/5 0.2R 15VA 1T

ALH-0.66 80III 1250/1 0.2R 20VA 1T

ALH-0.66 100III 2000/5 0.2R 40VA 1T EP

ALH-0.66 50III 1000/5 0.5R 20VA TH

ALH-0.66 80III 1250/5 0.2R 20VA

ALH-0.66 100III 2000/5 0.2R 40VA 1T-TS

ALH-0.66 50III 150/1 0.5R 2.5VA 1T

ALH-0.66 80III 1250/5 0.2R 20VA 1T EP

ALH-0.66 100III 2000/5 0.2SR 20VA 1T

ALH-0.66 50III 200/1 0.5R 5VA 1T

ALH-0.66 80III 1250/5 0.2SR 10VA 1T

ALH-0.66 100III 2500/1 0.2R 20VA

ALH-0.66 50III 200/5 0.5R 5VA 1T

ALH-0.66 80III 1500/1 0.2R 20VA 1T

ALH-0.66 100III 2500/1 0.2R 20VA EP

ALH-0.66 50III 250/1 0.5R 5VA 1T

ALH-0.66 80III 1500/1 0.2R 20VA 1T EP

ALH-0.66 100III 2500/5 0.2R 40VA 1T

ALH-0.66 50III 250/5 0.5R 5VA 1T

ALH-0.66 80III 1500/1 0.2R 20VA 1T-TS-EP

ALH-0.66 100III 2500/5 0.2R 40VA 1T EP

ALH-0.66 50III 300/1 0.5R 5VA

ALH-0.66 80III 1500/5 0.2R 20VA 1T

ALH-0.66 100III 3000/1 0.2R 20VA

ALH-0.66 50III 300/5 0.5R 5VA 1T

ALH-0.66 80III 1500/5 0.2R 20VA 1T-EP

ALH-0.66 100III 3000/1 0.2R 20VA 1T EP

ALH-0.66 50III 400/1 0.5R 10VA 1T

ALH-0.66 80III 1500/5 0.2R 20VA 1T-TH

ALH-0.66 100III 3000/5 0.2R 40VA 1T

ALH-0.66 50III 400/5 0.2R 10VA 1T

ALH-0.66 80III 1500/5 0.2R 20VA 1T-TS-EP

ALH-0.66 100III 3000/5 0.2R 40VA 1T EP

ALH-0.66 50III 400/5 0.5R 10VA 1T

ALH-0.66 80III 1500/5 0.2SR 10VA 1T

ALH-0.66 100III 3000/5 0.2R 40VA 1T-K

ALH-0.66 50III 500/1 0.5R 10VA 1T

ALH-0.66 80III 1600/1 0.2R 20VA 1T

ALH-0.66 100III 3000/5 0.2R 40VA 1T-TH

ALH-0.66 50III 500/5 0.2R 10VA 1T

ALH-0.66 80III 1600/5 0.2R 20VA

ALH-0.66 100III 3000/5 0.2SR 40VA 1T

ALH-0.66 50III 500/5 0.5R 10VA 1T

ALH-0.66 80III 1600/5 0.2R 20VA 1T EP

ALH-0.66 100III 400/1 0.5R 5VA 1T

ALH-0.66 50III 600/1 0.5R 10VA

ALH-0.66 80III 2000/1 0.2R 20VA 1T

ALH-0.66 100III 400/5 0.5R 5VA 1T

ALH-0.66 50III 600/5 0.2R 10VA

ALH-0.66 80III 2000/1 0.2R 20VA 1T-EP

ALH-0.66 100III 500/1 0.5R 10VA EP

ALH-0.66 50III 600/5 0.2SR 2.5VA 1T

ALH-0.66 80III 2000/5 0.2R 40VA 1T

ALH-0.66 100III 600/1 0.5R 10VA EP

ALH-0.66 50III 600/5 0.5R 10VA 1T

ALH-0.66 80III 2000/5 0.2R 40VA 1T-EP

ALH-0.66 100III 750/1 0.5R 10VA EP

ALH-0.66 50III 600/5 0.5R 10VA 1T-TH

ALH-0.66 80III 2000/5 0.2R 40VA 1T-TH

ALH-0.66 100III 750/5 0.5R 10VA

ALH-0.66 50III 750/1 0.5R 10VA 1T

ALH-0.66 80III 2000/5 0.2R 40VA 1T-TS-EP

ALH-0.66 100III 750/5 0.5R 10VA 1T EP

ALH-0.66 50III 750/5 0.2R 5VA 1T

ALH-0.66 80III 2000/5 0.5R 40VA 1T

ALH-0.66 100III 800/1 0.5R 10VA EP

ALH-0.66 50III 750/5 0.5R 10VA 1T

ALH-0.66 80III 2500/1 0.2R 20VA 1T

ALH-0.66 100III 800/5 0.2R 10VA

ALH-0.66 50III 750/5 0.5R 10VA 1T-TH

ALH-0.66 80III 2500/1 0.2R 20VA 1T-EP

ALH-0.66 100III 800/5 0.2R 10VA 1T EP

ALH-0.66 50III 800/1 0.5R 10VA

ALH-0.66 80III 2500/5 0.2R 40VA 1T

ALH-0.66 100III 800/5 0.5R 10VA 1T

ALH-0.66 50III 800/5 0.2R 10VA 1T

ALH-0.66 80III 2500/5 0.2R 40VA 1T-EP

ALH-0.66 120III 1000/5 0.2R 15VA

ALH-0.66 50III 800/5 0.5R 10VA 1T

ALH-0.66 80III 400/1 0.5R 10VA 1T

ALH-0.66 120III 1200/5 0.2R 20VA 1T

ALH-0.66 60III 1000/1 0.5R 10VA 1T

ALH-0.66 80III 400/1 0.5R 10VA 1T-EP

ALH-0.66 120III 1500/5 0.2R 20VA 1T

ALH-0.66 60III 1000/1 0.5R 10VA 1T EP

ALH-0.66 80III 400/5 0.5R 5VA

ALH-0.66 120III 2000/1 0.2R 20VA 1T

ALH-0.66 60III 1000/5 0.2R 15VA 1T

ALH-0.66 80III 400/5 0.5R 5VA 1T-EP

ALH-0.66 120III 2000/5 0.2R 40VA 1T

ALH-0.66 60III 1000/5 0.2R 15VA 1T EP

ALH-0.66 80III 500/1 0.5R 10VA 1T-TS

ALH-0.66 120III 2000/5 0.2R 40VA 1T-TH

ALH-0.66 60III 1000/5 0.2SR 10VA

ALH-0.66 80III 500/1 0.5R 10VA EP

ALH-0.66 120III 2500/1 0.2R 20VA 1T

ALH-0.66 60III 1000/5 0.5R 10VA 1T

ALH-0.66 80III 500/5 0.2R 15VA 2T EP

ALH-0.66 120III 2500/5 0.2R 40VA 1T

ALH-0.66 60III 1000/5 0.5R 10VA 1T EP

ALH-0.66 80III 500/5 0.5R 10VA 1T

ALH-0.66 120III 2500/5 0.2R 40VA-TH

ALH-0.66 60III 1000/5 0.5R 15VA TH

ALH-0.66 80III 600/1 0.5R 10VA 1T

ALH-0.66 120III 3000/1 0.2R 20VA 1T

ALH-0.66 60III 1200/1 0.2R 20VA 1T

ALH-0.66 80III 600/5 0.2R 10VA

ALH-0.66 120III 3000/5 0.2R 40VA 1T

ALH-0.66 60III 1200/5 0.2R 20VA 1T

ALH-0.66 80III 600/5 0.5R 10VA 1T

ALH-0.66 120III 3000/5 0.2R 40VA 1T-K

ALH-0.66 60III 1200/5 0.2R 20VA 1T EP

ALH-0.66 80III 600/5 0.5R 10VA 1T-EP

ALH-0.66 120III 3000/5 0.2R 40VA 1T-TH

ALH-0.66 60III 1200/5 0.2R 20VA 1T-TH

ALH-0.66 80III 600/5 0.5SR 10VA 1T

ALH-0.66 120III 3200/5 0.2R 40VA 1T

ALH-0.66 60III 1200/5 0.2SR 10VA

ALH-0.66 80III 700/5 0.5R 10VA 1T

ALH-0.66 120III 3500/5 0.2R 40VA 1T

ALH-0.66 60III 1200/5 0.5R 20VA

ALH-0.66 80III 700/5 0.5R 10VA 1T EP

ALH-0.66 120III 4000/1 0.2R 20VA 1T

ALH-0.66 60III 1200/5 0.5R 20VA 1T-EP

ALH-0.66 80III 750/1 0.5R 10VA

ALH-0.66 120III 4000/1 0.2R 20VA EP

ALH-0.66 60III 1250/5 0.2R 20VA 1T

ALH-0.66 80III 750/1 0.5R 10VA EP

ALH-0.66 120III 4000/5 0.2R 40VA 1T

ALH-0.66 60III 1500/1 0.2R 20VA

ALH-0.66 80III 750/5 0.2R 10VA

ALH-0.66 120III 4000/5 0.2R 40VA 1T-K

ALH-0.66 60III 1500/5 0.2R 20VA

ALH-0.66 80III 750/5 0.5R 10VA 1T

ALH-0.66 120III 4000/5 0.2R 40VA 1T-TH

ALH-0.66 60III 1500/5 0.2R 20VA 1T EP

ALH-0.66 80III 750/5 0.5R 10VA 1T-EP

ALH-0.66 120III 4000/5 0.2SR 40VA 1T

ALH-0.66 60III 1500/5 0.5R 20VA 1T

ALH-0.66 80III 800/1 0.5R 10VA

ALH-0.66 120III 800/5 0.2R 10VA 1T

ALH-0.66 60III 1500/5 0.5R 20VA 1T EP

ALH-0.66 80III 800/1 0.5R 10VA 1T-EP

ALH-0.66 120III 800/5 0.5R 10VA 1T

ALH-0.66 60III 1600/5 0.5R 20VA 1T EP

ALH-0.66 80III 800/1 0.5R 10VA 1T-TS

ALH-0.66 130III 1000/5 0.2R 15VA 1T

ALH-0.66 60III 2000/1 0.2R 20VA 1T

ALH-0.66 80III 800/5 0.2R 10VA 1T

ALH-0.66 130III 1200/1 0.2R 20VA 1T

ALH-0.66 60III 2000/5 0.2R 40VA 1T

ALH-0.66 80III 800/5 0.2R 10VA 1T EP

ALH-0.66 130III 1200/5 0.2R 20VA 1T

ALH-0.66 60III 2000/5 0.5R 40VA 1T

ALH-0.66 80III 800/5 0.2SR 5VA 1T

ALH-0.66 130III 1500/1 0.2R 20VA

ALH-0.66 60III 400/1 0.5R 10VA 1T

ALH-0.66 80III 800/5 0.5R 10VA 1T

ALH-0.66 130III 1500/5 0.2R 20VA

ALH-0.66 60III 400/5 0.2R 10VA 1T-TH

ALH-0.66 80III 800/5 0.5R 10VA 1T-EP

ALH-0.66 130III 1500/5 0.2R 20VA-EP

ALH-0.66 60III 400/5 0.2R 5VA 1T-TH

ALH-0.66 30III 100/5 0.2R 2.5VA 3T

ALH-0.66 130III 2000/1 0.2R 20VA 1T

ALH-0.66 60III 400/5 0.5R 10VA 1T

ALH-0.66 30III 150/5 0.2R 2.5VA 2T

ALH-0.66 130III 2000/5 0.2R 40VA 1T

ALH-0.66 60III 500/1 0.5R 10VA 1T

ALH-0.66 30III 150/5 0.2R 5VA 2T

ALH-0.66 130III 2000/5 0.2R 40VA 1T EP

ALH-0.66 60III 500/1 0.5R 10VA 1T EP

ALH-0.66 30III 150/5 0.5R 2.5VA 1T

ALH-0.66 130III 2000/5 0.2R 40VA 1T-TS

ALH-0.66 60III 500/5 0.2R 10VA 1T

ALH-0.66 30III 150/5 0.5R 2.5VA 1T-TH

ALH-0.66 130III 2000/5 0.2SR 40VA

ALH-0.66 60III 500/5 0.5R 10VA 1T

ALH-0.66 30III 200/1 0.5R 5VA

ALH-0.66 130III 2500/1 0.2R 20VA 1T

ALH-0.66 60III 500/5 0.5R 10VA 1T EP

ALH-0.66 30III 200/5 0.5R 5VA 1T

ALH-0.66 130III 2500/5 0.2R 40VA 1T

ALH-0.66 60III 600/1 0.5R 10VA 1T

ALH-0.66 30III 250/5 0.2R 2.5VA

ALH-0.66 130III 2500/5 0.2R 40VA 1T-EP

ALH-0.66 60III 600/1 0.5R 10VA 1T EP

ALH-0.66 30III 250/5 0.5R 5VA 1T

ALH-0.66 130III 2500/5 0.2R 40VA 1T-TS

ALH-0.66 60III 600/5 0.2R 10VA 1T

ALH-0.66 30III 250/5 0.5R 5VA 1T-TH

ALH-0.66 130III 2500/5 0.2SR 40VA 1T

ALH-0.66 60III 600/5 0.2R 10VA 1T-EP

ALH-0.66 30III 300/1 0.5R 5VA 1T

ALH-0.66 130III 3000/1 0.2R 20VA 1T

ALH-0.66 60III 600/5 0.2SR 2.5VA 1T

ALH-0.66 30III 300/5 0.2R 5VA 1T

ALH-0.66 130III 3000/1 0.2R 20VA 1T EP

ALH-0.66 60III 600/5 0.5R 10VA 1T

ALH-0.66 30III 300/5 0.5R 10VA

ALH-0.66 130III 3000/5 0.2R 40VA 1T

ALH-0.66 60III 600/5 0.5R 10VA 1T EP

ALH-0.66 30III 300/5 0.5R 10VA 1T-TH

ALH-0.66 130III 3000/5 0.2R 40VA 1T-EP

ALH-0.66 60III 700/5 0.5R 10VA 1T EP

ALH-0.66 30III 400/1 0.5R 10VA 1T

ALH-0.66 130III 3000/5 0.2R 40VA 1T-TS

ALH-0.66 60III 750/1 0.5R 10VA 1T

ALH-0.66 30III 400/5 0.2R 10VA

ALH-0.66 130III 3000/5 0.2SR 40VA 1T

ALH-0.66 60III 750/1 0.5R 10VA 1T EP

ALH-0.66 30III 400/5 0.2SR 2.5VA 1T

ALH-0.66 130III 3500/5 0.2R 40VA 1T

ALH-0.66 60III 750/5 0.2R 10VA 1T

ALH-0.66 30III 400/5 0.5R 10VA 1T

ALH-0.66 130III 3500/5 0.2R 40VA 1T EP

ALH-0.66 60III 750/5 0.5R 10VA 1T

ALH-0.66 30III 400/5 0.5R 10VA J

ALH-0.66 130III 4000/1 0.2R 20VA 1T

ALH-0.66 60III 750/5 0.5R 10VA 1T EP

ALH-0.66 30III 500/5 0.2R 10VA 1T

ALH-0.66 130III 4000/1 0.2R 20VA 1T EP

ALH-0.66 60III 800/1 0.5R 10VA 1T

ALH-0.66 30III 500/5 0.5R 10VA 1T

ALH-0.66 130III 4000/5 0.2R 40VA 1T

ALH-0.66 60III 800/1 0.5R 10VA 1T EP
